iDigi Connector for Wind River Linux: Getting Started Guide

Step 3: Build a Sample Application

  1. Double click on the Wind River Workbench icon icon on the desktop; this icon starts the Wind River Workbench tool. The Workbench is a development suite used to build, debug and launch the iDigi sample applications.

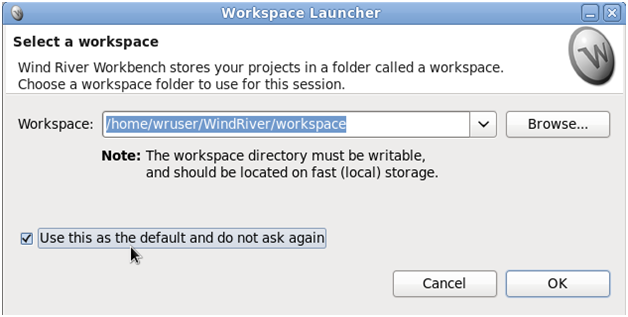

  2. When the Workspace Launcher dialog appears, you can select "Use this as the default" and "Do not ask again" to avoid this dialog in the future.


  3. Read the Welcome to Wind River Workbench 3.3 dialog, and then on the Getting Started tab, click the X to close the view.
  4. The sample applications appear on the left hand side of the workbench.

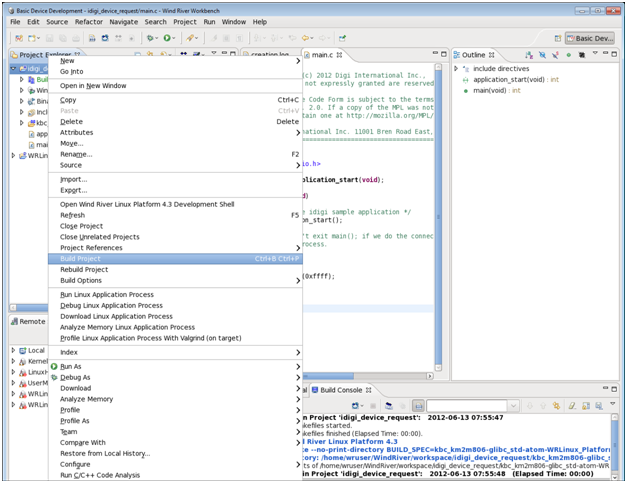

  5. Right-click on idigi_device_request and select Build Project, as shown in the picture below:

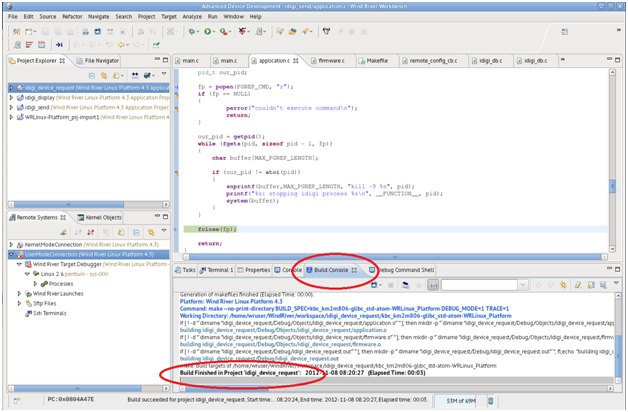

In the Build Console on the lower portion of the screen you can view the build output, it will say "Build Finished" as shown below.




Back to Step 2 | Move to Step 4
